BUILT-IN SUB SONIC FILTER
• POWER SUPPLY 11-15V DC NEG. GROUND
• MAX. OUTPUT VOLTAGE 7V RMS
• PRE GRAPHIC FREQUENCY 50Hz, 125Hz,
315Hz, 750Hz,2.2KHz,6KHz, 12KHz
• EQUALIZATION RANGE +-12dB
• SUBWOOFER FREQUENCY 43~120Hz,
60~200Hz
• INPUT IMPEDANCE 15K OHMS
• S/N RATIO 90dB
• T.H.D. 0.05%
• CHANNEL SEPARATION 70dB
• FREQUENCY RESPONSE
15Hz-30KHz (-3dB)

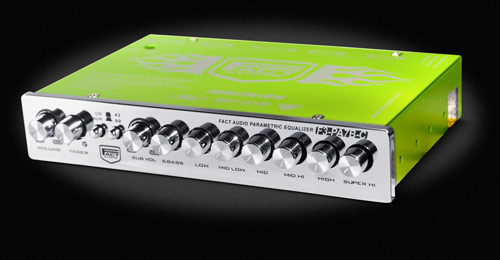

Master volume control with up to 7 Volts RMS of output.
Seven band parametric equalizer with 12 dB Boost/Cut.
Specific bandwidth for each band plus high frequency shelving.
On-board 30V bipolar switching power supply.
Subwoofer level control.
Subwoofer frequency selectors.
input AUX/CD select switch.
Night illumination design.
SUBWOOFER FREQ.
This Switch selector Subwoofer frequency, 43Hz~120Hz,60Hz~200Hz.
PARAMETRIC EQUALIZER CONTROLS
Control the frequency response of the Booster or cut with the four tone controls each
S.Bass, Low, Mid, Mid High, High, Super Hi

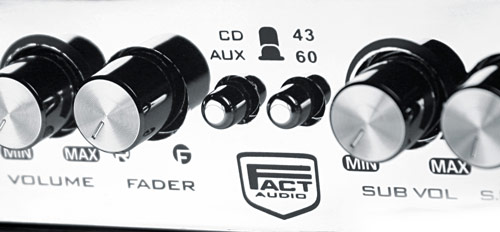

FADER CONTROL
This control adjusts the volume between the front and rear in 4 speakers system.
INPUT SELECTOR SWITCH
This Switch selector the CD or Aux input
SUBWOOFER VOLUME
Control the subwoofer volume.
VOLUME CONTROL
This control adjusts the output level.
